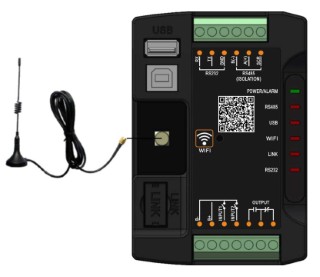

IoT Communication Module

Internet of Things for DENAIR Screw Air Compressor

Description

Description

Smart IoT-Enabled for DENAIR Screw Compressor

DENAIR Screw compressor is equipped with an advanced IoT Communication Module that connects the compressor to the internet, enabling real-time monitoring from any smartphone, tablet, or computer. This intelligent system delivers predictive diagnostics, energy optimization, and full online visibility of your compressor’s performance.

Why IoT Matters for Your Compressor

Modern factories demand reliability and efficiency. DENAIR IoT system is designed to reduce downtime, improve energy performance, and accelerate troubleshooting.

Key Features

System Inefficiency Detection
Instantly identifies abnormal energy usage, pressure drops, or performance deviations.
Real-Time Alerts
Immediate notifications for alarms, overloads, overheating, or other issues.
Predictive Maintenance
Schedules service intervals based on actual operating conditions—not assumptions.
24/7 Operational Data Logging
Records pressure, temperature, current, load profile, and energy usage every second.
Remote Technical Support
PTBIG engineers can access your compressor via the IoT web platform for fast diagnostics.

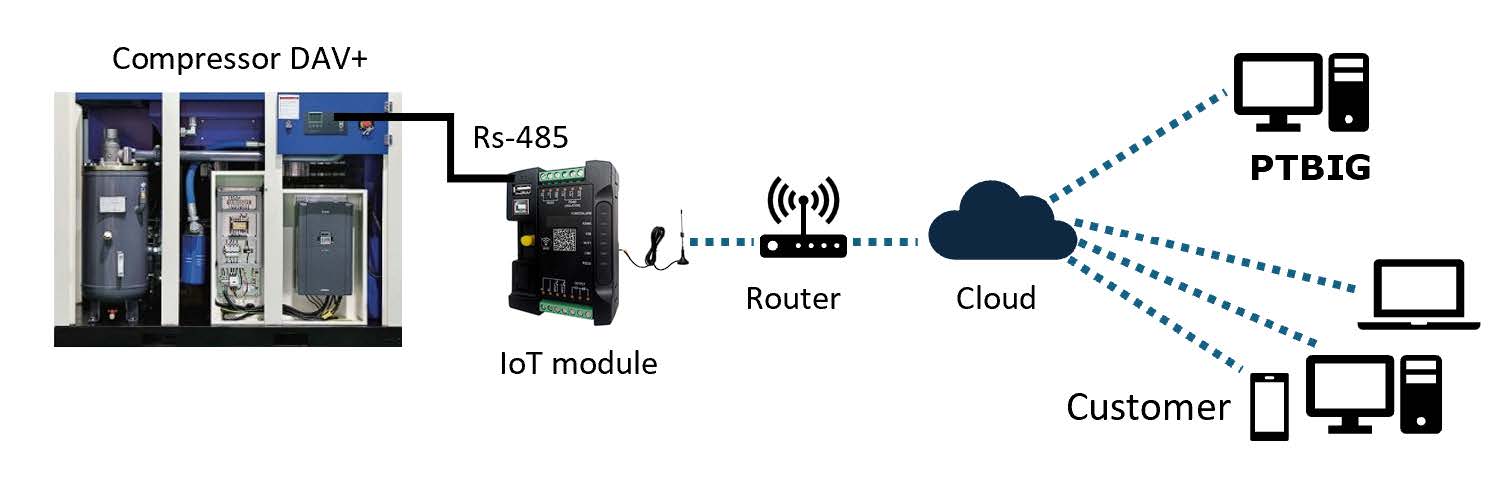

How the IoT Module Works

The IoT module communicates with the compressor controller using Modbus RTU RS-485, collecting operational data every second.
This data is then transmitted through an internet router or mobile data network to a secure cloud server, where it is:

Stored
Analyzed
Processed into actionable insights
Displayed in a smart, intuitive dashboard

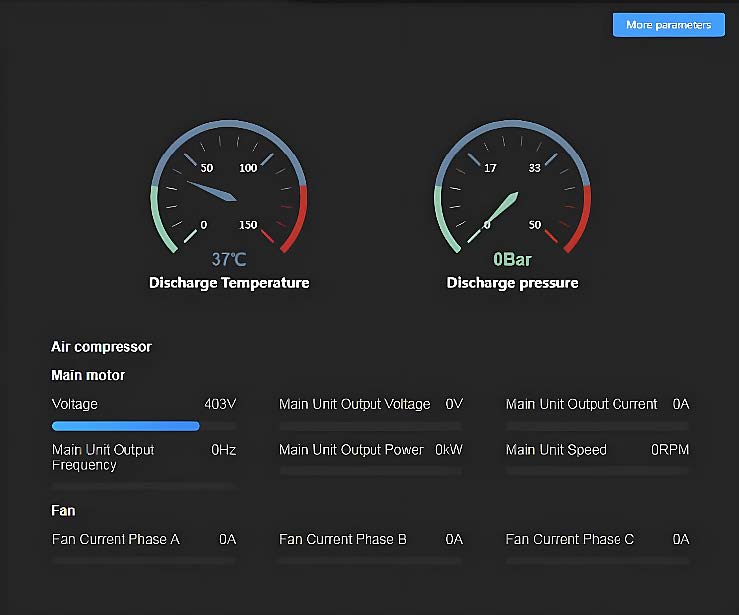

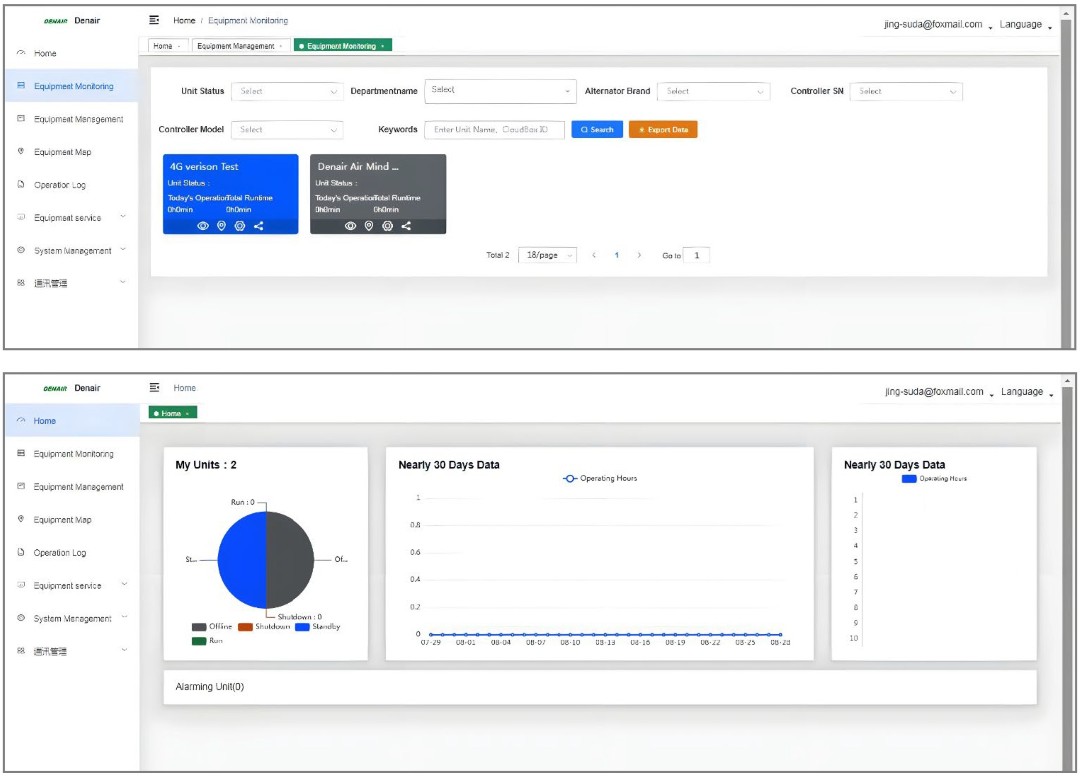

Real-Time Monitoring Dashboard

Access your compressor’s full status anytime—no need to go to the plant.
Simply open the web dashboard or mobile app.

Dashboard Highlights

Status Overview
Real-time display of:
- Running/Stopped Status
- Discharge Pressure
- Motor Current
- Critical Temperatures
- Energy Consumption
Energy Monitoring
Insightful charts showing:
- Daily, weekly, and monthly kWh
- Specific Power (kW/m³/min)
- Load/unload cycle patterns
- Energy-saving opportunities

The interface is designed to be clean, visual, and easy for operators, supervisors, and managers.

Boost Productivity, Reduce Downtime, and Stay Connected

With DENAIR IoT, your compressor becomes smarter, safer, and more efficient.
PTBIG provides full technical support to help you maximize performance and minimize operational risk.
